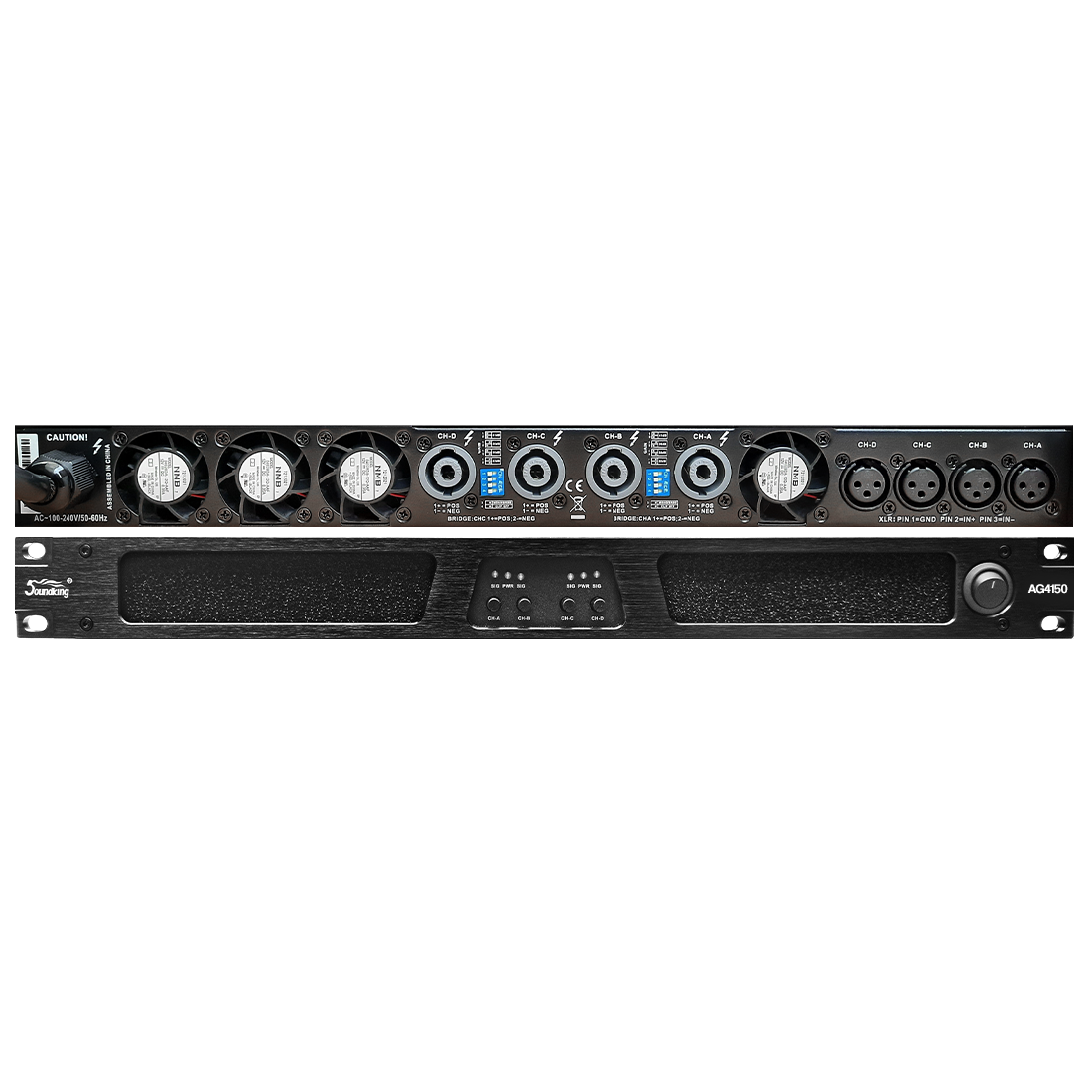

Soundking AG4150 Amplificador de Potencia

ESPECIFICACIONES:

Rated Power (THD=1% continous sine 1kHz, each channel working simultaneously):

• 8Ω/stereo: 4x1500W
• 4Ω/stereo: 4x2550W
• 2Ω/stereo: 4x3570W
• 16Ω/bridge: 2x3000W
• 8Ω/bridge: 2x5100W
• 4Ω/bridge: 2x7140W

RMS output voltage (THD=1%, 1kHz): 109.5V

Slope (1kHz, bypass LPF): 50v/us

Sensitivity (Rated Power, 1kHz): selectable 41dB, 28dB, 35dB, 32dB

THD+N (10% rated output power): 0.01%

IMD-SMPTE(10% rated output power): 0.01%

DIM30 (10% rated output power): 0.01%

Crosstalk rejection (less than rated power, 20Hz~1kHz): ≥90 dB

Frequency response (10% rated output power, 8Ω, 20Hz): ±0.2dB

Input impedance: 20kΩ(bal) , 10kΩ(unbal)

Damping Factor, 8Ω, 20Hz~200Hz): ≥300

S/N ratio (A weighted, 20Hz~20kHz): ≥110dB

Power supply: 90~260VAC, 50~60 Hz

Protection: Under voltage, DC, Over temperature, Limiter: Over temperature , Over load, Short.

Dimension (WxHxD): 483x44x465mm

Net weight: 12kg
