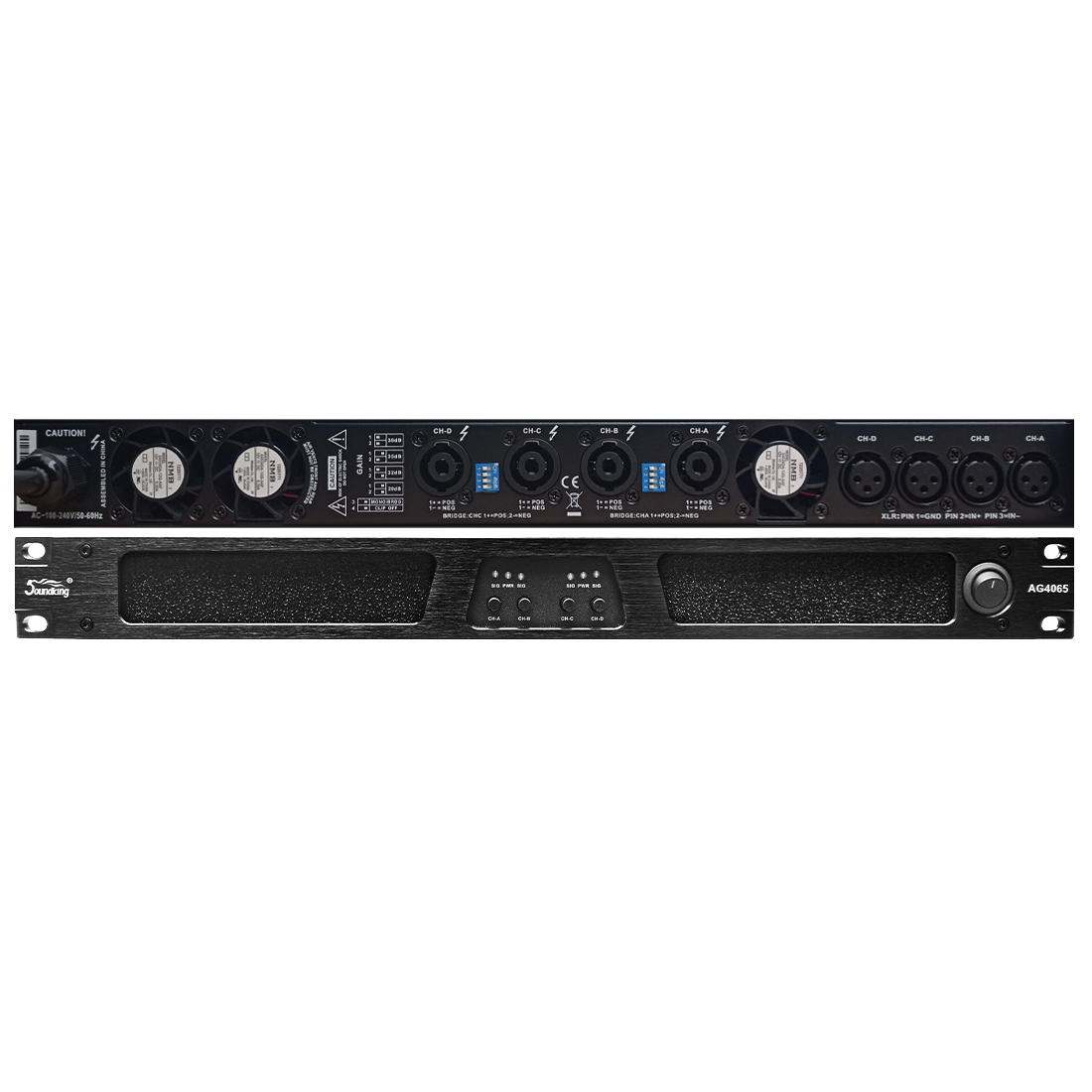

Soundking AG4065 Amplificador de Potencia 4x1870W – 2ohm Modo Estéreo/Paralelo/Puente (Entrada de Balanceada XLR)

ESPECIFICACIONES:

Rated Power (THD=1% continous sine 1kHz, each channel working simultaneously):

• 8Ω/stereo: 4x650w
• 4Ω/stereo: 4x1100w
• 2Ω/stereo: 4x1870w
• 16Ω/bridge: 2x1300w
• 8Ω/bridge: 2x2200w
• 4Ω/bridge: 2x3740w

RMS output voltage (THD=1%. 1kHz): 72.1V

Slope (1kHz, bypass LPF): 50v/us

Sensitivity (Rated Power, 1kHz): selectable 41dB, 28dB, 35dB, 32dB

THD+N (10% rated output power): 0.01%

IMD-SMPTE(10% rated output power): 0.01%

DIM30 (10% rated output power): 0.01%

Crosstalk rejection (less than rated power, 20Hz~1kHz): ≥90 dB

Frequency response (10% rated output power, 8Ω, 20Hz): ±0.2dB

Input impedance: 20kΩ(bal) , 10kΩ(unbal)

Damping Factor, 8Ω, 20Hz~200Hz): ≥300

S/N ratio (A weighted, 20Hz~20kHz): ≥108dB

Power supply: 90~260VAC, 50~60 Hz

Protection: Under voltage, DC, Over temperature, Limiter: Over temperature , Over load, Short.

Dimension (WxHxD): 483x44x370mm

Net weight: 9kg
